Frozen block liners are won or lost on the specification sheet, so this page is built as a lookup tool: capacity band, dimensions, material, coating and stated cold-chain rating in one place. The documented configuration is the 7.5 KG block liner waxed, No. BEF‑S006, measuring 481 × 253 × 60 mm and built from 337 g kraft paper or white coated paper, with waxing offered as an option and PE food-grade film applied from the inside and outside. Whether you are shortlisting a paper food box manufacturer or briefing a waxed block liner manufacture partner on a 1000 pcs‑per‑design run, the matrix below is where the specification work starts.
| Specification field | Documented value | Buyer check before quoting |
|---|---|---|
| Product number | No. BEF- S006 | Quote this reference to lock the exact configuration. |
| Capacity band | 7.5 KG block liner (also listed as 7.5 KG waxed carton box) | Match the band to your frozen block weight. |
| Dimensions | 481 × 253 × 60 mm | Measure your block footprint and wall height first. |
| Material | 337 g kraft paper or white coated paper | Choose the base board before choosing a coating. |
| Waterproof method | Waxed is optional; PE food-grade film from inside and outside | Decide the coating level with your freezer in mind. |
| Special glue material | Can stand -40 degree frozen condition | Confirm this figure in writing against your cold-chain route. |
| Box type | Euro type of lid and bottom; fold type available | Fold type suits flat-packed storage before filling. |
| Humidity | Under 14%, protects the products from damp | Align with your cold-room humidity readings. |
| MOQ | 1000 pcs for each design | Counted per design, not per order. |
| Packing | In poly bag first, then carton boxes inside, on pallets | Check your unloading and pallet-handling setup. |
| QC | 3 times: material selection, preproduction machines testing, finished goods | Ask which checkpoints apply to a custom design. |
| Turnaround | 5-7 working days unbranded; 7-10 working days branded | Add lead time on top of vessel transit. |
| Other capacity bands referenced | 500 g, 800 g, 1 kg, 2 kg, 2.5 kg, 3 kg, 5 kg carton box | Dimensions and coating for these bands are confirmed per design. |

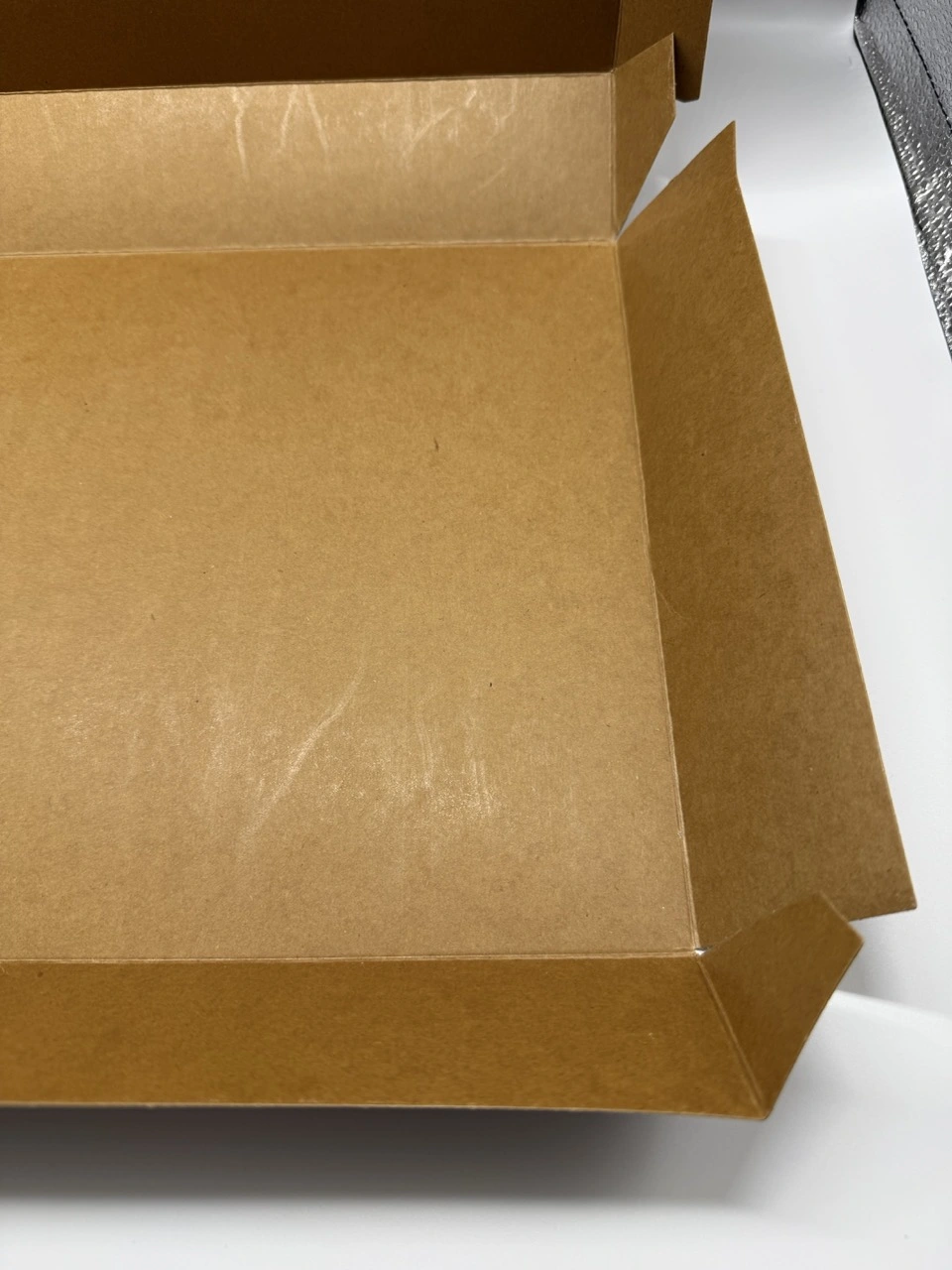

Four coating positions are supported by the published specification. Walk the branches in order - each one only changes the coating line, never the base material.
The liner stays at its base build: 337 g kraft paper or white coated paper, with no wax and no PE film added.
Decide this only if your product moisture load is low and your storage is short.
Request this optionSwitch on the optional waxing line while keeping the base material unchanged.
Decide this when you want a water-resistant surface without changing the liner's film structure.
Request this optionThe documented waterproofing method: PE food-grade film is applied from the inside and the outside.
Decide this when both the product-facing and outer surfaces need protection.
Request this optionCombine the optional waxing line with the documented PE food-grade film inside and outside.
Decide this as your maximum-coverage build, and confirm it in the quote as a distinct line item.
Request this option
The product page carries two different cold figures in two different places. Both are shown here exactly as published so you can plan against the conservative one.
-40 °C
Specification table - Special Glue Material
"Can stand -40 degree frozen condition."
-60 °C
Product introduction - German glue statement
German glue is used so that the carton box, with or without film, "can stay -60 degree for the frozen condition.."
Plan your cold-chain route against the lower figure, -40 °C, because it sits in the specification table and is tied to the glue line rather than to the general introduction. Then ask for the applicable rating to be confirmed in writing for your specific design, coating choice and destination before the specification is signed off - especially if your route includes a deep-freeze leg, a long dwell time or a re-export stage.
Confirm the rating for my route
Match your operation to a starting point, then confirm the single decision that goes with it. Each starting point is drawn from the published configuration, not from a sample set.
Four rules govern how a liner order is built, printed and timed. Each one is a decision you make before the quote, not after.
Design is made as the customer's design and a design service can be provided, so an existing liner can be re-cut to a different footprint instead of forcing your block to fit 481 × 253 × 60 mm.
Branding changes the clock: unbranded work is stated at 5-7 working days and branded work at 7-10 working days. Choose before you fix a shipment date.
MOQ is 1000 pcs for each design. If you carry two designs, plan two minimums and set your trial order volume accordingly.
A free production sample is made for inspection once the mass production order is placed, and a customized sample can also be made before an order is placed - so a custom sample is the route to validate a new geometry.
Because waxing is optional and the PE food-grade film is specified inside and outside, list the coating choice as its own line in the specification so it cannot be substituted silently.
The purchase path is an enquiry: no cart and no published price on the product page. Send dimensions, material, coating and design count, and ask for the latest quote.
Send the capacity band, the 481 × 253 × 60 mm check against your own block, your base material choice, the coating level and the number of designs. You will get a quote that matches the specification you actually intend to approve - including the glue rating you need confirmed for your cold-chain route.
Keep adjacent product options together for a faster catalog comparison.
We produced the frozen condition carton box and master carton over 15 years, the German brand glue to achieve the carton box with or without film can stay -60 degree for the frozen condition..
View product
For many year, we use german glue to achieve the carton box with or without film can stay -60 degree for the frozen condition.
View product
For over 15 years experience, we use German glue to achieve the carton box with or without film can stay -60 degree for the frozen condition. for frozen meat or seafood.
View productThe page publishes the 7.5 KG block liner waxed, number BEF-S006, measuring 481 x 253 x 60 mm and built from 337 g kraft paper or white coated paper, with waxing optional and PE food-grade film applied from the inside and outside.
Four coating positions are supported and each one only changes the coating line: no coating, waxing, PE food-grade film inside and outside, or waxed plus PE film.
MOQ is 1000 pcs for each design, with 5-7 working days quoted for unbranded work and 7-10 working days for branded work.
The page states both: the specification table lists special glue material that can stand -40 degree frozen condition, while the product introduction cites German glue for -60 degree, so plan against the lower figure and ask for the applicable rating to be confirmed in writing for your route.
Packing runs poly bag first, then carton boxes inside, on pallets, and the standard build is a Euro type of lid and bottom with a fold type available for flat-packed storage.
Three: material selection, pre-production machine testing and finished goods inspection, so ask which checkpoints apply to a custom design.
